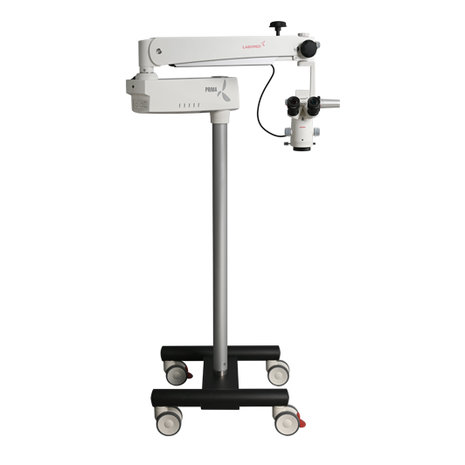

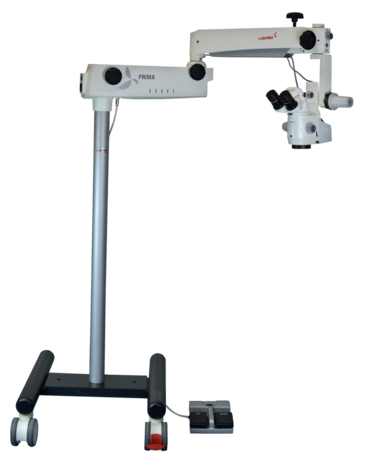

Prima OPH Mμ Microscope with 45º head, CMO 200 mm and H-base
High value technology in cataract removal; the Prima Mu OPH is a versatile microscope designed for both surgical and clinical environments. With an intelligent LED illumination system that runs long and cool. An Apochromatic optical system, superb RedReflex system and motorized movement. This microscope delivers on the promise of high performance at affordability.
A super bright LED produces over 75,000 Lux. A run time of 50,000 hours eliminates the need for a bulb change.
An Apochromatic optical system produces sharp and aberration-free images at every step. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and anti-scratch properties, yielding artifact free and durable optics.
RedReflex is made possible in the Mu OPH thanks to an ingenious optical design, enabling visualization of an illuminated retina for easy detection of ruptured vessels, arteries, or damage to the optic disc.
Ophthalmologists can use a digital SLR or video camera, thanks to a wide selection of adapters available through the ProLine™.
Microscope Specifications
-
Prima Mµ OPH microscope with an intelligent LED illumination system
-
Mounting system: heavyweight H-shape base on lockable castor wheels, swivel arm mounted on a pillar
-
Suspension arm: 980 mm
-
Magnichanger: 3 step magnichanger with magnification 0.6x, 1.0x and 1.6x
-
Viewing bodies: binocular tubes 45º, IPD range 55-75 mm, f=170 mm
-
Objective: lens f=200 mm
-
Eyepieces: WF adjustable eyepiece 10x/FN 18 mm with eye guards
-
Observation head: ergonomic adjustable handgrip for observation head
-
Microscope carriers: 90º carrier
-
Illumination: in magnichanger integrated illumination 27W LED, up to 50,000 hours of LED lamp lifetime, 75,000 Lux
-
Input: AC 115-240V, 50/60Hz
-
Filter: yellow and green filter with a filter holder
-
Vertical movement of arm: 600 mm
-
Fuse: quick-acting fuse 1.0 Amp
-
Standard accessories: dust cover for microscope observation head and illumination box
PACKAGE CONTENTS:
> Prima Mµ OPH microscope
> Objective CMO 200 mm
> Foot control for hight adjustment
> Tools for securing base and pillar
> Sterilizable knob covers
> Nylon dust cover
DIMENSIONS (mm)
CONFIGURATIONS
