Prima DNT Microscope, Nuvar 20

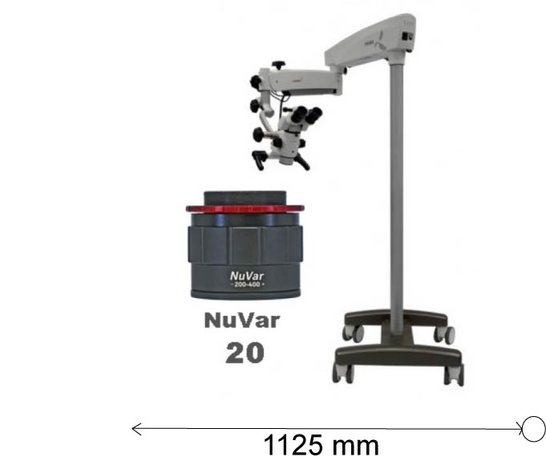

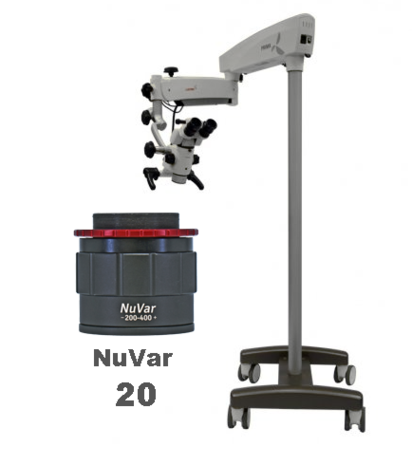

Mobile stand with objective NuVar 20

Artikelnummer

6139000-020

EAN

8719189243239

Variatie: Prima DNT Microscope, Nuvar 20

Op verlanglijst

Heeft u een vraag over dit product?

Stel ons uw vraag

Prima DNT Microscope Basic with mobile stand and NuVar 20

The Prima DNT dental microscope reflects a performance-driven and modular design for the evolving needs of today's dental professional. With an intelligent LED illumination system, crisp optics and fluid articulation, the Prima DNT is a technology leader among dental operating microscopes.



A super bright LED delivers over 135,000 Lux with a natural daylight colour temperature. A run time of up to 60,000 hours eliminates the need for frequent bulb changes. Built-in electronics make for the most compact arm system around.



An Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLite™ coatings promise reflection-free and durable optics.


The optional NuVar™ objective delivers variable working distances, making the Prima DNT more versatile and user friendly for dental professionals.




The ProLine™ features a host of digital SLR, video camera and CCD adapters. All helping to simplify documentation and communicating treatment plans to patients. A Rotoplate and Extender Kit make viewing hard-to-see regions of the mouth more comfortable and ergonomic.



Microscope Specifications

  • Prima DNT microscope with an intelligent LED illumination system

  • Mounting system: mobile stand with 2 locking wheels

  • Suspension arm: 1125 mm

  • Magnichanger: 5 step magnichanger with magnification 0.4x, 0.6x, 1.0x, 1.6x and 2.5x

  • Viewing bodies: ergonomic binocular tubes 0º-210º tiltable, IPD range 55-75 mm, f=170 mm

  • Objective: NuVar 20

  • Eyepieces: WF 10X/18 mm with foldable eye guards, diopter adjustment ± 5 mm with diopter lock

  • Observation head: ergonomic adjustable handgrips for observation head

  • Microscope carriers: 120º carrier

  • Illumination: fiber optic illumination 50W LED, up to 60,000 hours of LED lamp lifetime, 135,000 Lux

  • Input: AC 115-240V, 50/60Hz

  • Filter: yellow and green filter with filter holder

  • Vertical movement of arm: 600 mm

  • Fuse: quick-acting fuse 1.0 Amp

  • Standard accessories: dust cover for microscope observation head and illumination box



PACKAGE CONTENTS:

> Prima DNT microscope
> Objective NuVar 20
> Tools for securing base and pillar
> Sterilizable knob covers
> Nylon dust cover



DIMENSIONS (mm)





MOUNTING (mm)





CONFIGURATIONS




Verpakkingsinformatie:

afmeting en gewicht doos 1 afmeting en gewicht doos 1
58 x 43 x 24 cm; 7,4 kg
afmeting en gewicht doos 2 afmeting en gewicht doos 2
159 x 42 x 37 cm; 32,2 kg
afmeting en gewicht doos 3 afmeting en gewicht doos 3
67 x 33 x 29 cm; 30,5 kg
afmeting en gewicht doos 4 afmeting en gewicht doos 4
70 x 33 x 33 cm; 20,1 kg
afmeting en gewicht doos 5 afmeting en gewicht doos 5
70 x 33 x 33 cm; 20,1 kg
afmeting en gewicht pallet 1 afmeting en gewicht pallet 1
120 x 80 x 173 cm; 101 kg

kies

Type of microscope
Prima DNT
Magnichanger
5-step
Objective
NuVar 20
Mounting
H-base with 4 wheels
Total length of the arm
525 + 922 = 1447 mm
Light output in Lux
135.000 Lux
Head
Ergo head (moving over 210º degree)
