Magna Microscope with Wall Mount Magna Microscope with Wall Mount
Magna Microscope with Wall Mount Magna Microscope with Wall Mount
Magna Microscope with Wall Mount
Wall mount with objective NuVar 10

Artikelnummer

6129002

EAN

8719189244072

Voorraad :

Variatie: Magna Microscope with Wall Mount

Op verlanglijst

Heeft u een vraag over dit product?

Stel ons uw vraag

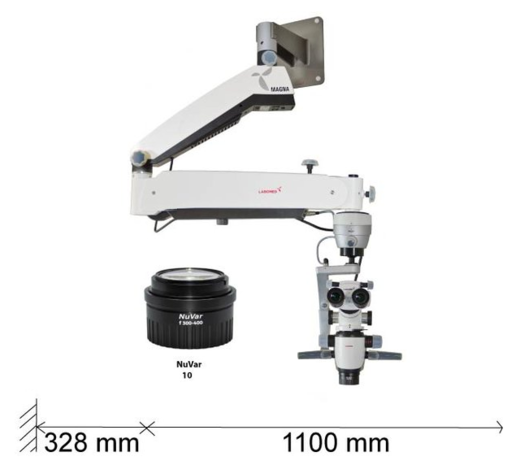

The Power of Zoom - Magna Microscope with wall mount and NuVar 10

The Labomed® Magna dental microscope brings to your practice the power of crystal clear visualization in a compact, ergonomic design. The system features an Automatic Balancing Arm (ABA) that gives users 360 degrees of freedom in positioning the microscope. A highly responsive apochromatic zoom system ensures ease in landing on the ideal magnification.




A brilliantly designed electromagnetic brake system provides ultimate flexibility in microscope positioning. Left/right handles each with their own brake-release buttons extend versatility. Holding down either button allows the microscope to move with ease. Upon release, the microscope locks and balances in place.





Apochromatic premium optics are packaged in a convenient zoom system to provide a continuous range of magnifications. The NuVar™ variable working distance objective (f300-f400mm) comes standard. Proprietary MaxLite™ coatings promise reflection-free, durable optics, ensuring the highest fidelity resolution.




A super bright LED provides shadow-free light with a natural daylight temperature (over 105,000 Lux) for up to 60,000 hours. For digital documentation needs, a host of digital SLR, video camera, and CCD adapters are available with the ProLine™.



Microscope Specifications

  • Magna microscope with a super bright and long lasting LED illumination system

  • Mounting system: wall mount

  • Suspension arm: 1100 mm

  • Magnichanger: Galilean Zoom 1:6, convertible to 8 step magnichanger, 0.4-2.5X

  • Viewing bodies: 0-210° tilting head with Rotoplate, DBSi (inclined double beam splitter), Double Iris and DSLR Adapter, IPD range 50-75 mm

  • Objective: NuVar 10 with variable focal length adjustment from 300-400 mm with fine focus mechanism

  • Eyepieces: WF 10X/18 mm lockable eyepieces, one with resolution markup to assist in diopter adjustment

  • Observation head: ABA system with ergo head

  • Microscope carriers: ABA (Automatic Balancing Arm) with electromagnetic release for easy, drift free positioning

  • Illumination: fiber optic illumination 50W LED, up to 60,000 hours of LED lamp lifetime, 105,000 Lux

  • Input: AC 115-240V, 50/60Hz

  • Filter: yellow and green filter with a filter holder

  • Vertical movement of arm: ± 250 mm, power saving feature with light cut-off in park position

  • Fuse: quick-acting fuse 1.0 Amp

  • Standard accessories: dust cover for microscope observation head and illumination box



PACKAGE CONTENTS:

> Magna microscope with wall mount
> Objective NuVar 10
> Tools for securing base and pillar
> Sterilizable knob covers
> Nylon dust cover



CONFIGURATIONS



Verpakkingsinformatie:

afmeting en gewicht doos 1 afmeting en gewicht doos 1
96 x 60 x 40 cm; 17,1 kg
afmeting en gewicht doos 2 afmeting en gewicht doos 2
123 x 67 x 46 cm; 30,6 kg
afmeting en gewicht doos 3 afmeting en gewicht doos 3
49 x 48 x 44 cm; 17,3 kg
afmeting en gewicht pallet 1 afmeting en gewicht pallet 1
120 x 80 x 131 cm; 67 kg

kies

Type of microscope
Magna
Magnichanger
Zoom 0,4x ~ 2,5x
Objective
NuVar 10
Mounting
Wall mount 328 mm
Total length of the arm
500 + 600 = 1100 mm
Light output in Lux
105.000 Lux
Head
ABA system with Ergo head
