Prima Mu ENT Microscope, Wall mount
Prima Mu ENT Microscope, Wall mount
90º head, CMO 250 mm, 75,000 Lux & wall mount

Artikelnummer

6212000-060

EAN

8719189244488

Voorraad :

Variatie: Prima Mu ENT Microscope, Wall mount

Op verlanglijst

Heeft u een vraag over dit product?

Stel ons uw vraag

Prima Mµ ENT microscope with 90º head, CMO 250 mm and wall mount

The Prima Mµ is intended for routine inspection and in screening clinical environments. A well-designed apochromatic optical system with a high output LED built directly into the microscope housing provides users with a compact solution. The arm system has been carefully designed to mitigate vibration and lower the system's centre of gravity to provide a more stable, lighter weight solution.





A single 27 watt LED intelligently drives the illumination system to deliver over 75,000 Lux at a carefully selected color temperature of 5700K, making Prima Mµ's eye-pleasing illumination the brightest in its class. Built into the magnichanger, the LED design makes the system more compact and runs cool for over 50,000 hours.




An Apochromatic 3-step Galilean optical system produces aberration-free images corrected for all primary wavelengths. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and scratch-resistant properties, illuminating images evenly and without artifacts. Fine focusing control is provided through long working distance NuVar 10. The Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLite™ coatings promise reflection-free and durable optics.



The ProLine™ features a host of digital SLR, video camera and CCD adapters. All helping to simplify documentation and communicating treatment plans to patients. A Rotoplate and Extender Kit make viewing hard-to-see regions of the mouth more comfortable and ergonomic.



Microscope Specifications

  • Prima Mu ENT microscope with an intelligent LED illumination system

  • Mounting system: wall mount

  • Suspension arm: 980 mm

  • Magnichanger: 3 step magnichanger with magnification 0.6x, 1.0x and 1.6x

  • Viewing bodies: binocular tubes 90º tiltable, IPD range 55-75 mm, f=170 mm

  • Objective: lens f=250 mm with a manual fine focus control knob

  • Eyepieces: WF adjustable eyepiece 10x/FN 18 mm with eye guards

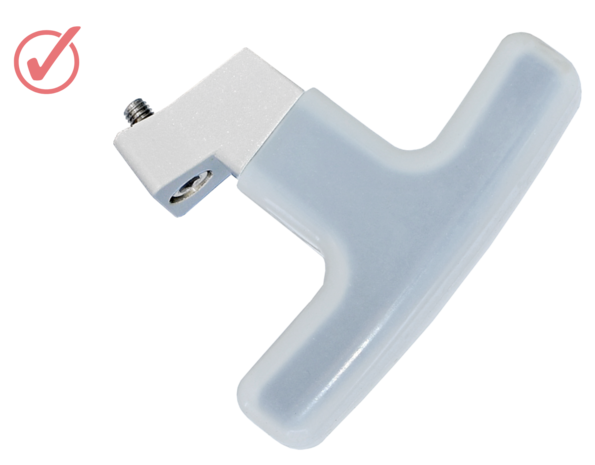

  • Observation head: ergonomic T-handle for observation head

  • Microscope carriers: straight down mounted but also delivered with 155º carrier

  • Illumination: in magnichanger integrated illumination 27W LED, up to 50,000 hours of LED lamp lifetime, 75,000 Lux

  • Input: AC 115-240V, 50/60Hz

  • Filter: green filter with a filter holder

  • Vertical movement of arm: 600 mm

  • Fuse: quick-acting fuse 1.0 Amp

  • Standard accessories: dust cover for microscope observation head and illumination box



PACKAGE CONTENTS:

> Prima Mµ ENT microscope
> Objective CMO 250 mm
> Tools for securing base and pillar
> Sterilizable knob covers
> Nylon dust cover

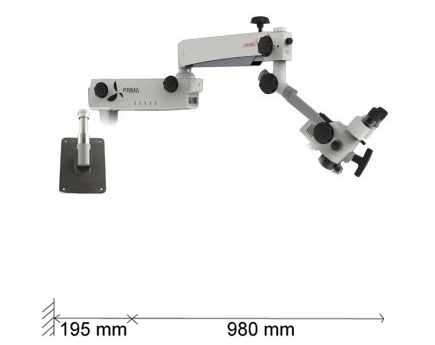

DIMENSIONS (mm)





CONFIGURATIONS




Verpakkingsinformatie:

afmeting en gewicht doos 1 afmeting en gewicht doos 1
58 x 43 x 23 cm; 6,9 kg
afmeting en gewicht doos 2 afmeting en gewicht doos 2
47 x 34 x 31 cm; 13,4 kg
afmeting en gewicht doos 3 afmeting en gewicht doos 3
137 x 51 x 37 cm; 21 kg

kies

Type of microscope
Prima ENT
Magnichanger
3-step
Objective
250mm
Mounting
Wall mount 195 mm
Total length of the arm
380 + 600 = 980 mm
Light output in Lux
75.000 Lux
Head
Straight 90º head
