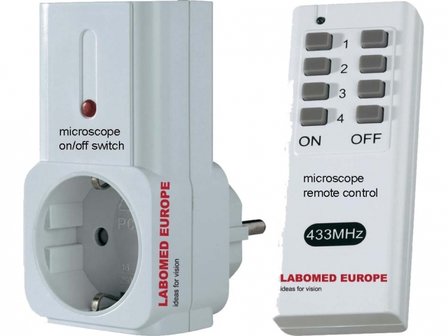

Microscope power switch on/off
The product consists of a radio controlled main socket and a radio controlled hand-held
transmitter. By means of the hand-held transmitter a consumer load connected to the radio
controlled main socket can be turned on or off.
The system is already programmed for easy use.
Technical Data radio controlled hand-held transmitter
- Transmission frequency: 433 MHz
- Power supply: 1x 12 V battery (type 23A)
- Address codes: 4 (set with sliding switch I, II, III, IV
- Switching channels: 4 (each with “ON“/“OFF“-button)
- Range: up to 30 m (open space, see chapter “Range”)
- LED Lights up briefl y on use of buttons
- Operating ambience: Only suitable for closed, dry indoor locations
-
Technical Data radio controlled mains socket
- Reception frequency: 433 MHz
- Operating voltage: 230 V/AC, 50 Hz
- Protection class: I
- Connection output: 2000 W Ohm resistive load, 300 W inductive load
- Address codes: 4 (set with turn switch I, II, III, IV)
- Switching channels: Adjustable with turn-switch 1 2 3 4
- LED Lights up on activated mains socket/consumer load
- Operating ambience: Only suitable for closed, dry indoor locations
