Lx500, Trinocular 30 Degree Head, LED
Lx500, Trinocular 30 Degree Head, LED
Trinocular 30 Degree Head LED

Artikelnummer

9144700

EAN

8719189244219

Voorraad :


Op verlanglijst

Heeft u een vraag over dit product?

Stel ons uw vraag

Helping Make Your Next Great Discovery Possible

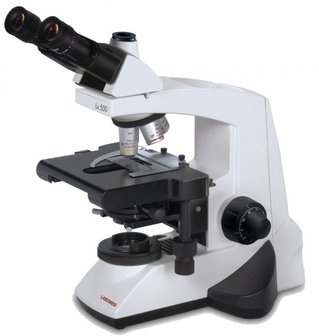

The Lx 500 clinical microscope is the outcome of world-class technologies and design innovations. Highly modular and accessory friendly, the Lx 500 is a versatile and fully extendable clinical microscope that boasts graceful symmetry and performance thanks to its ergonomic and optical features.

Lx 500 Advantages:

RP2 series Infinity Corrected Super Plan optics provide a virtually flat field of view at all magnifications, with pristine contrast and color fidelity.  Proprietary MaxLite coatings further enhance optical performance.

With an optional ergonomic articulating head, viewing angle will conform to the user to provide a more comfortable seated posture.

A Rackless stage ensures safety and maximizes workspace. A ceramic surface promises scratch resistance during use.

True Kohler illumination and a standard flip-top condenser guarantee superb contrast from 2.5x to 100x magnification. Lighting rechargeable LED (approx. 100,000 hours).

Microscope

Stand Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Body Trinocular 30°, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment
Eyepiece Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated
Nosepiece Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal coated
Mechanical Stage Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder
Condenser Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Focusing Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation
Illumination True Köhler illumination with halogen 6V-30W lamp with variable illumination control. LED option available.
Electronics

Universal input 100V - 240V AC, 50/60 Hz. Built-in voltage stabilizer





Package Contents

  • Power Cable (6ft)
  • Cargille Immersion Oil
  • Nylon Dust Cover & Cleaning Cloth
  • Styrofoam Casing

Accessories (Optional)


  • Pointers & Micrometer Reticules
  • Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits
  • Dual Viewing Bridge
  • Auxiliary Objectives and Eyepieces
  • Cord Hanger Kit
  • Digital Cameras and Adapters
  • Soft Carrying Case




Lx 500 brochure



Lx 500 Brochure


Learn more about the Lx 500's unique value offering.



Lx 500 manual



User Manual


Learn all about the Lx 500, its functions, and more
