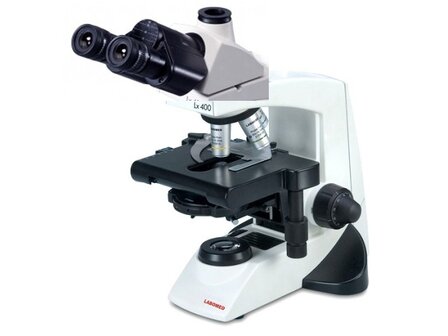

Lx 400 trinocular, positive phase contrast compound microscope
From the most basic to the more complex laboratory applications, the Lx 400 stands strong as a truly modular system. With an Infinity-corrected Plan Achromatic optical system, users will enjoy crisp images with excellent colour fidelity and high accuracy in image rendition for a wide spectrum of specimens.
Equal attention is given to the quality of this system's mechanical components, producing robust performance throughout the life of your microscope. With the LX series' cost-effective synergy of beauty and brains, a balanced microscope no longer has to be reserved for the financially privileged.
Infinity Corrected Plan Achromatic objectives and Extra Wide Field eyepieces provide brilliant images with pristine colour fidelity and superb contrast. The system allows for introduction of accessories in the optical path without loss of performance. Highly efficient energy-friendly LED light source options are available. Coupled with well-designed optics, the system provides brilliant images.
Strain-free operation is provided through an extremely ergonomic design with comfortable hand rests and a conveniently positioned focus drive. The mechanical stage is rackless in the X-direction.
- Optical system: Anti-fungus, Infinity optical system
- Stand: Single mold sturdy stand with anti-rust materials. Extended base with hand rests for enhanced stability and comfort
- Viewing Bodies: Siedentopf trinocular, 30º inclined, 360º rotatable, Interpupillary distance 48-75mm. Trinocular tube is not included. Available as accessory: third tube, video adapter or photo adapter.
- Diopter adjustment: +/- 6 dioptres
- Eyepieces: Wide Field focusable paired eyepiece WF 10x/20mm, with foldable eyeguard, lockable, anti-fungus coating
- Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
- Objectives: RP series DIN Infinity Corrected Positive Phase Plan Achromatic objectives 10x, 20x, 40x (spring loaded), 100x (spring loaded, oil), anti-fungus coating
- Sub-Stage Phase Turret: Phase Contrast Kit comprising of Zernike phase turret with Bright field, Dark field and phase annulus for 10x, 20x / 40x, 100x / and D.F. observations, Adapter for phase telescope, phase turret, green and blue filter
- Mechanical Stage: Rackless X-axis, double plate mechanical stage plate size 200 x 160mm, X/Y travel range 78 x 54mm. Low drive movement controls. Hard-coated surface for scratch resistance.Focusing: Feather touch tension adjustment free co-axial coarse and fine focusing for ultra smooth movement.
- Illumination: LED illumination with variable illumination control. Up to 500 hours of Halogen bulb life.
- Electrical: Universal input 100V-240V AC
-
Packed in a styrofoam box
