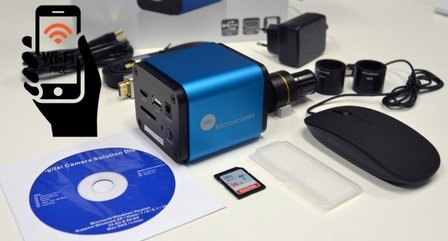

HDMI/USB camera, HB
HDMI/USB camera, HB
0 Reviews | Review toevoegen

All in 1( HDMI??? card) C-mount camera with high sensitivity CMOS sensor Simultaneous HDMI & WIFI output Built-in mouse control Built-in image capture & video record to SD card Built-in camera contr

Artikelnummer

8125518

EAN

8719189244132

Voorraad :


| Meer

Heeft u een vraag over dit product?

Stel ons uw vraag

Multiple interfaces (HDMI card multiple interfaces) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI?? are used as the data transfer interface to HDMI display or computer.
For HDMI output, The embedded software will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video.
For WIFI output, unplug the mouse and plug in the USB WIFI adapter, connect the computer WIFI to the camera, then the video stream can be transfer to computer with the advanced software BMS_pix3. With BMS_pix3, you can control the camera, process the image.




Order Code Sensor & Size(mm) Pixel(?m) G Sensitivity
Dark Signal
FPS/Resolution Binning Exposure


8125518



1080P/5M/
Sony IMX178(C)
1/1.8"(6.22x4.67)



2.4x2.4



425 mv with 1/30s
0.15 mv with 1/30s



60@1920x1080
(HDMI)
25@1920x1080
(WIFI)



1x1



0.03ms~918ms



HDMI Camera and Microscope


Front View of the 8125518 Camera Back View of the 8125518 Camera

Normal View Side View




Interface & Button Functions


USB

USB Camera or USB Mouse

HDMI

HDMI Output

DC 12 V

12 V Power in

SD

SD Card Slot

ON/OFF

Power On/Off Switch

LED Power On Indicator
Other Specification for HDMI Output
UI Operation With USB Mouse
Image Capture

JPEG Format with 5M Resolution in SD Card(8125518)



JPEG Format with 2M Resolution in SD Card(8125518)

Video Record ASF Format 1080P 30fps in SD Card
Camera Control Panel Including Exposure, Gain, White Balance, Color
Adjustment, Sharpness and Denoising Control
Toolbar Including Zoom, Mirror, Comparison, Freeze,
Cross, Browser Function
Other Specification for WIFI Output
UI Operation With USB Mouse to Operate on the embedded CamView
WIFI Performance 802.11n 150Mbps; RF Power 20dBm(Maximum)
Maximum Connected Devices 3~6(According to the Environment and Connection Distance)
White Balance Auto White Balance

Color Technique

Ultra-Fine Color Engine (WIFI)

Capture/Control API

Standard SDK for Windows/Linux/Mac(WIFI)



Recording System



Still Picture or Movie (WIFI)

Software Environment (for USB2.0 Connection)

Operating System

Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit)
OSx(Mac OS X)
Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 4GB or More

USB Port: USB2.0 High-speed Port

Display:   19” or Larger

CD-ROM

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/2A Adaptor

Overall Dimensions

Width x Depth x Height

78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”)

Shipping Weight

0.47 kg (1.0lbs)
