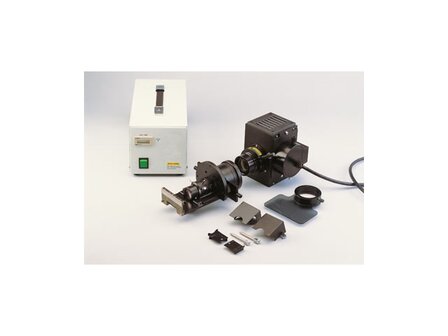

Fluorescence Attachment, detachable
Fluorescent illuminator: Fluorescent lighting method- reflected fluorescent lighting based on slide switching of dichroic mirror cubes.
Fluorescence Plan objectives: 4x, 10x and 20x
Intermediate tube magnification: 1x
Shutter : Switchable using filter slider
Excitation protective shield: Fixed on condenser with a screw.
Possible observation modes: B excitation/G excitation.
B-Excitation Block:
- Excitation: 450-480nm
- Barrier: 515nm
- Dichroic: 500nm
G-Excitation Block:
- Excitation: 510-550nm
- Barrier: 590nm
- Dichroic: 570nm
Bulb Housing:
- Bulb centering: up/down
- Mirror centering: left/right
- Bulb focusing: collector focusing, mirror focus, screw system.
- Safety mechanism: interlock switch, UV cut filter built in.
- High Pressure Mercury Bulb: HBO 50W/AC
Power Supply:
- Ignition system: auto ignition
- Hour counter: display accumulated hours of operation.
Operating Environment:
Indoor use
- Altitude: Max 2000m
- Ambient temperature: 5° C to 40° C (41° F to 104° F)
- Maximum relative humidity: 80% for temperatures up to 31° C (88° F)
- Supply voltage: fluctuations not to exceed ± 10% of nominal voltage
- Orange colored Plastic screen to safeguard the Operator from UV light.
