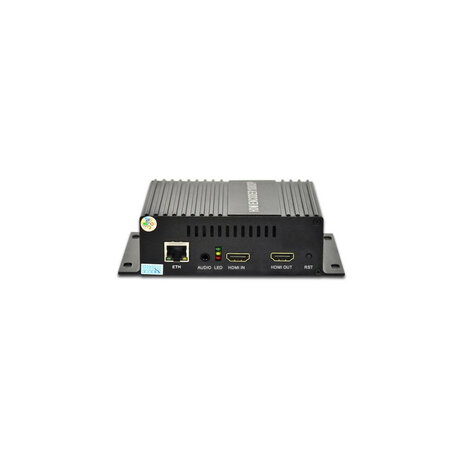

DIGICAST Plus Mini Real-Time Multi-protocol H.264 HD IPTV video Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via the internet and adopts state-of-the-art compression technology of H.264/AVC, which realizes its resolution to be up to 1080P.

With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high-quality video even at a lower bit rate which can efficiently save the cost of bandwidth. DIGICAST Plus accepts 1*HDMI input & HDMI loop out, then output 4 channels TS over IP in H.264 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs.

DIGICAST Plus provides a fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

DIGICAST plus mini video encoder streaming key features
  • 1 CH HDMI(HDCP supported) +3.5mm audio input & HDMI Loop out
  • Support RTMP User name and Password for authentication of IPTV Server
  • Support up to 4 TS over IP stream out.
  • Fluctuate level: 1, 2, 3, 4 and 5 option (the higher the level, the larger the code flow fluctuation ratio)
  • Built-in Audio Gain, able to adjust the volume independently.
  • Support OSD rolling, image superimposing, insertion LOGO, Characters and symbols.
  • Settings could be effective immediately, no need to reboot.
  • Support H.264 Baseline Profile/Main Profile/H.264 High Profile and MP3 & LE-AAC, LC-AAC audio compression
  • Bitrate mode: CBR/VBR(16Kkbit/s~12Mbit/s)
  • Capable of image parameter settings
  • Switchable of audio output mode: Left, Right and Stereo
  • Configurable of Multi-rate, Multi-resolution, Multi-protocol
  • Providing RTSP/HTTP/UDP or RTMP protocol
  • Support HDCP protocol
  • Support ONVIF Network Video Protocol
  • Offering Audio line-in or HDMI embedded
  • System supporting WINDOWS 10 and 11, LINUX

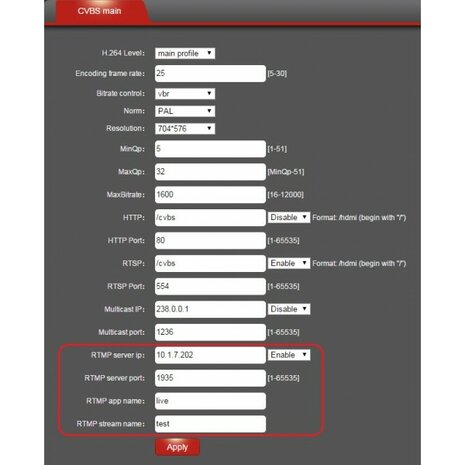

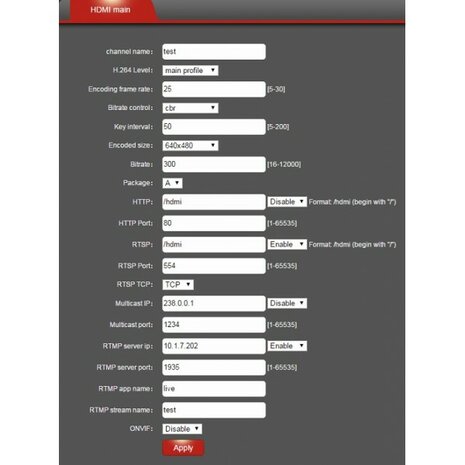

  • Web-based management
  • Full-duplex mode 1000M
  • DIGICAST plus mini video encoder streaming applications
  • IPTV system
  • OTT system
  • Internet TV
  • Digital Signage Project
  • Remote Video Conference
  • Video Monitoring
  • DIGICAST plus mini video encoder streaming tech spec
VIDEO SPECIFICATIONS:
  • Video compression: H.264/AVC High Profile Level 4.0
  • Video inputs: HDMI(HDCP supported) & HDMI Loop out
  • Resolution: Main stream (supports two protocols): 1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480, 720x404,704x576,640x480,640x360,auto; Sub-stream (supports two protocols): 1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480, 640x300,352X288,320X240,320X180 auto
  • Bit-rate: 16kbps~12Mbps, CBR/VBR
  • Video pre-processing: Noise reduction, Sharpen, Filtering

AUDIO SPECIFICATIONS
  • Audio compression: LC-AAC,LE-AAC, MP3
  • Sampling rate: Adaptive, selectable of re-sample.
  • Sampling accuracy: 24-bit
  • Bit Rate: 48000,64000,96000,128000,160000,192000,256000
  • Re-sample: 32000,44100,48000
OUTPUTS
  • IP output: Transport protocol: TS over IP output, RTSP/HTTP/UDP or RTMP protocol. For HDMI to IP output 4*TS over IP stream out(HTTP/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution(up to 1080P) for large screen applications, 2 channels with lower resolution(up to 720P) for small screen applications)
Support RTMP User name and Password for authentication of IPTV Server
Connector: RJ45, 100M
