| Megapixels |
24.1 |
|
| Total Pixels |
25.8 |
|
| Sensor Size |
22.3 x 14.9mm |
|
| Pixel Dimensions |
6000 x 4000 |
|
| Pixel Size |
3.72µm |
|
| Diffraction-Limited Aperture |
f/6.0 |
|
| Sensor Stabilization |
N |
|
| Lens Mount |
EF-M (EF, EF-S, TS-E, MP-E lenses compatible via Mount adapter EF-EOS M) |
|
| FOVCF |
1.6x |
|
| Image Processor |
DIGIC 8 |
|
| |
| Autofocus |
|
|
| Type |
Dual Pixel CMOS AF System (Contrast detection method is used during 4K Movie and 4K Timelapse Movie) |
|
| Points |
Maximum 143 points depending on lens.
Max 25 frames in Zone AF
Freely position 1 AF point/ 1 AF Zone via manual selection (area available lens dependent) |
|
| Working Range |
EV -4 - 18, Movie: EV -2 - 18 (room temperature, f/1.4, ISO 100, One-Shot AF, 29.97fps/25fps) |
|
| Modes |
One-Shot AF and Servo AF |
|
| Point Selection |
Face + Tracking (Eye Detection AF available)
Zone AF
1-point AF
Spot AF |
|
| Microadjustment |
No |
|
| |
| Exposure Control |
|
|
| Metering Modes |
Real-time metering from the image sensor
(1) Evaluative metering (384 zones)
(2) Partial metering at center (approx. 5.8% of Live View Screen)
(3) Center weighted average metering
(4) Spot metering (approx. 2.9% of Live View Screen) |
|
| Metering Range |
Still image: EV -1 - 20 (at 23 °C, ISO 100)
Movie: EV 0 - 20 (at 23 °C, ISO 100) |
|
| Exposure Comp |
+/-3 EV in 1/3 stop increments |
|
| AEB |
|
|
| ISO Sensitivity |
100 - 25600 in 1/3 stop increments. Max in Auto can be set from 400 - 25600
4K Movie: 100 - 6400 in 1/3-stop increments. Full HD and HD Movie: ISO 100 - 12800 in 1/3-stop increments. ISO can be expanded to 25600. |
|
| Shutter Speed |
30-1/4000 sec in 1/3 stop increments, Bulb (Available range varies by shooting mode) |
|
| WB Settings |
Auto (Ambience Priority), Auto (White Priority), Daylight, Shade, Cloudy, Tungsten, White Fluorescent light, Flash, Custom, Color Temperature
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9. |
|
| Custom WB |
Yes, 1 setting can be registered |
|
| |
| Viewfinder |
|
|
| Type |
|
|
| Coverage |
Approx. |
|
| Magnification |
Approx. |
|
| Eyepoint |
Approx. |
|
| Information |
|
|
| DOF Preview |
|
|
| Eyepiece Shutter |
|
|
| |
| LCD |
|
|
| Type |

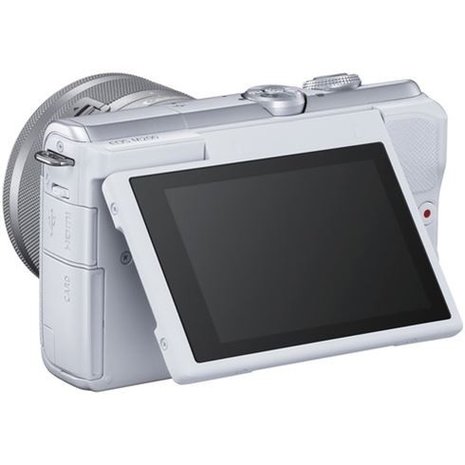

7.5 cm (3.0”) touchscreen LCD (TFT). 3:2 aspect ratio. Approx. 1,040,000 dots. Electrostatic capacitive type. Tiltable 180 degrees up. |
|
| Coating |
|
|
| Brightness Adj |
Adjustable to one of seven levels |
|
| Display Options |
Customisable and toggle via INFO. Button
(1) Liveview image with exposure info
(2) Liveview image with basic info
(3) Liveview image with full info
Customisable settings:
Grid overlay (x3 formats), Histogram (Brightness/ RGB), Multi aspect ratios, Hints and Tips |
|
| |
| Flash |
|
|
| Built-in GN |
5 (ISO 100, meters) |
|
| Built-in Coverage |
Up to 15mm focal length (35mm equivalent: 24mm) |
|
| Built-in Recycle Time |
Approx. 4 seconds |
|
| Modes |
Auto (E-TTL II) |
|
| X-Sync |
1/200 sec |
|
| Exposure Compensation |
±2 stops in 1/3-stop increments |
|
| Hot Shoe/PC Terminal |
No / No |
|
| External Flash Comp |
E-TTL II with EX series Speedlites, wireless multi-flash support |
|
| External Flash Control |
Via camera menu |
|
| |
| Shooting |
|
|
| Shooting Modes |
Scene Intelligent Auto, Hybrid Auto, Creative Assist, SCN(Self-Portrait, Portrait, Smooth Skin, Landscape, Sports, Close-up, Food, Night Portrait, Handheld Night Scene, HDR Backlight Control), Creative Filters (Grainy B/W, Soft Focus, Fish-eye Effect, Water painting effect, Toy camera effect, Miniature effect , HDR Art standard, vivid, bold, embossed), Program AE , Shutter priority AE, Aperture priority AE, Manual exposure, Movie (Movie auto exposure, Movie manual exposure, Time-lapse movie) |
|
| Picture Styles |
Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3) |
|
| Image Processing |
Highlight Tone Priority (standard and enhanced)
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings + Multi Shot NR)
Lens peripheral illumination correction
Chromatic aberration correction
Diffraction correction
Digital Lens Optimizer
Creative Assist:
Presets
Background Blur (5 settings)
Brightness (19 levels)
Contrast (9 levels)
Saturation (9 levels)
Color Tone 1 & 2 (19 levels)
Monochrome (Off/Black and white/Sepia/Blue/Purple/Green) |
|
| Drive Modes |
Single, Continuous, Self timer (2s, 10s, Continuous) |
|
| Continuous Shooting |
One shot AF: Approx. 6.1 shots/sec
With Servo AF: Approx. 4 shots/sec |
|
| Shutter Lag |
|
|
| Viewfinder Blackout |
|
|
| |
| Live View |
|
|
| FrameRate |
|
|
| Focusing |
One-Shot AF and Servo AF |
|
| Metering |
Real-time metering from the image sensor
(1) Evaluative metering (384 zones)
(2) Partial metering at center (approx. 5.8% of Live View Screen)
(3) Center weighted average metering
(4) Spot metering (approx. 2.9% of Live View Screen) |
|
| Display Options |
Customizable and toggle via INFO. Button
(1) Liveview image with exposure info
(2) Liveview image with basic info
(3) Liveview image with full info
Customizable settings:
Grid overlay (x3 formats), Histogram (Brightness/ RGB), Multi aspect ratios, Hints and Tips |
|
| |
| File Information |
|
|
| Still ImageType |
JPEG: Fine, Normal (Exif 2.31 compliant) / Design rule for Camera File system (2.0)
RAW: RAW (CR3 14-bit),
Digital Print Order Format [DPOF] Version 1.1 compliant |
|
| Image Size |
RAW: (3:2) 6000 x 4000, (4:3) 5328 x 4000, (16:9) 6000 x 3368, (1:1) 4000 x 4000
JPEG 3:2: (L) 6000 x 4000, (M) 3984 x 2656, (S1) 2976 x 1984, (S2) 2400 x 1600
JPEG 4:3: (L) 5328 x 4000, (M) 3552 x 2664, (S1) 2656 x 1992, (S2) 2112 x 1600
JPEG 16:9: (L) 6000 x 3368, (M) 3984 x 2240, (S1) 2976 x 1680 (S2) 2400 x 1344
JPEG 1:1: (L) 4000 x 4000, (M) 2656 x 2656, (S1) 1984 x 1984, (S2) 1600 x 1600
In-camera RAW processing & Image Resize available in playback |
|
| Movie Type |
MP4 [Video: MPEG-4 AVC/H.264, Audio: MPEG-4 AAC] |
|
| Movie Size |
4K - 3840 x 2160 (23.98, 25 fps)
Full HD - 1920 x 1080 (59.94, 50, 29.97, 25fps)
HD - 1280 x 720 (119.9, 100, 59.94, 50 fps) |
|
| Movie Length |
Max duration 29min 59sec, Max file size 4GB |
|
| |
| Other Information |
|
|
| Wireless Features |
Wi-Fi (802.11b/g/n, 2.4GHz), Bluetooth 4.1 (LE) |
|
| GPS |
No |
|
| Custom Functions |
6 custom functions |
|
| LCD Panel / Illumination |
No / No |
|
| Water & Dust Resistance |
|
|
| Sound Memo |
No |
|
| |
| Interface |
|
|
| Computer Interface |
Hi-Speed USB (Micro USB) |
|
| Other Interface |
Wireless LAN (IEEE802.11b/g/n), (2.4 GHz only, 1-11 ch)
Bluetooth® (Specification version 4.1, Bluetooth low energy technology)
HDMI (Micro - Type-D connector) |
|
| |
| Memory |
|
|
| Memory Type |
SD, SDHC, SDXC (UHS-I compatible) |
|
| |
| Batteries & Power |
|
|
| Battery |
Rechargeable Li-ion Battery LP-E12 |
|
| Battery Life |
Approx. 315 shots (conforms to CIPA)
Eco Mode: Approx. 485 shots
Movie Recording: Approx. 90 mins
Playback time when playing back a slideshow of still images: Approx. 4 hrs 55mins |
|
| Power Supply Battery Chargers |
Battery charger LC-E12
Compact Power Adapter CA-PS700 DC Coupler DR-E12 |
|
| |
| Physical Specs |
|
|
| Body Materials |
Polycarbonate |
|
| Shutter Durability Rating |
|
|
| Operating Environment |
0 – 40 °C, 85% or less humidity |
|
| Dimensions Inches |
4.26 x 2.64 x 1.38" (108.2 x 67.1 x 35.1mm) |
|
| CIPA Weight |
10.55oz (299g) |
